EVE 1 Protable Visual electrophysiology
The Eyevis EVE 1 seems to be a versatile tool designed for portable, real-time assessments of visual function, particularly in cases where in-depth retinal or optic nerve analysis is required. Its applications in diabetic retinopathy and other examinations make it a useful tool in both human and animal health contexts.
Visual Diagnostics for All Ages and Species

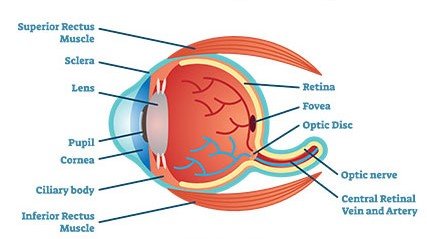

Diabetic Retinopathy

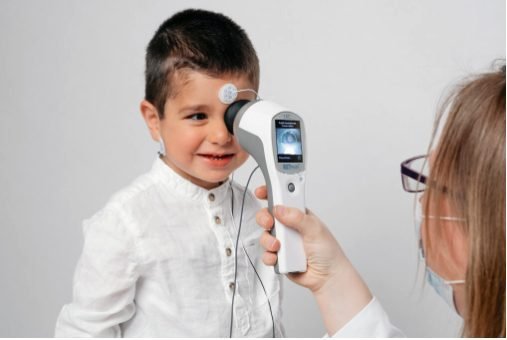

Child Examination

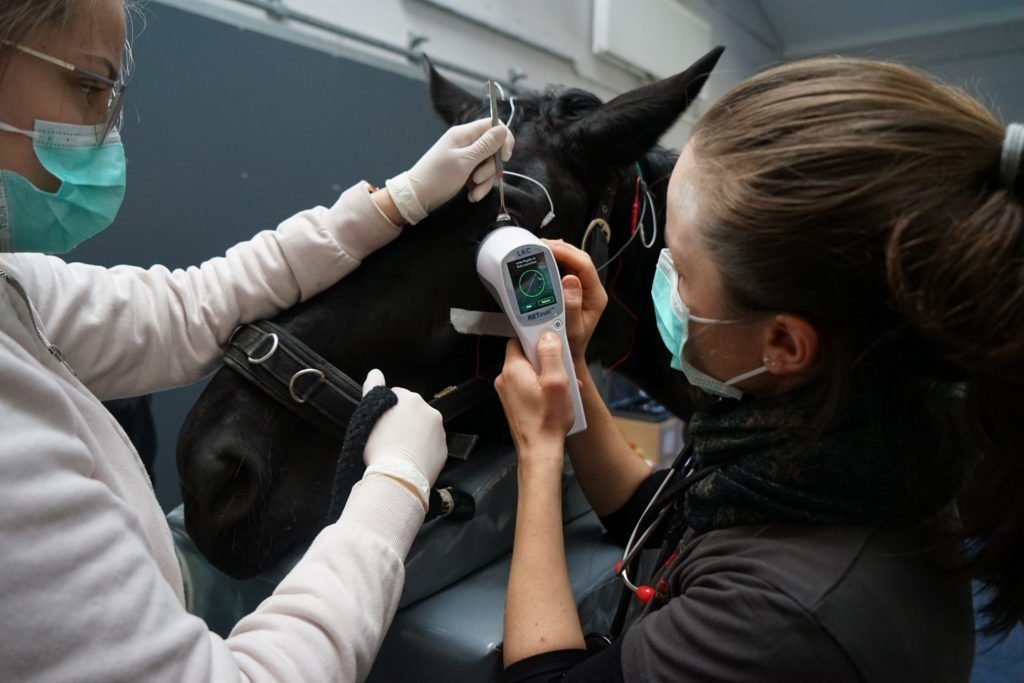

Animal Examination
Advantages
Impedance Indication
- Real-time feedback of impedance values.
- Facilitates doctor operations.
Skin Electrodes
- Adhesive design for easy placement of electrodes.
- Repetitive use, less consumables
Pupil Tracking
- Real-time tracking of position and diameter changes.
- Real-time adjustment of the flash.
Multiple Examine
- 12 tests are supported, chosen according to the patient’s needs.
Independent Storage
- Independent storage of historical data for tens of thousands of patients.
Parameters
Examination Items
- FlashERG: Dark-adapted0.01; Dark-adapted3.0; Dark-adapted3.0OPS; Dark-adapted10.0; Light-adapted3.0; Light-adapted3.0 Flicker
- FlickerERG: DR; Flicker4.0 Td.s; Flicker16.0 Td.s; Flicker32.0 Td.s
- FlashFVEP
Basic Parameters
- Common mode rejection ratio: >100db
- Gain range: 1k, 2k, 5k, 10k, 20k, 50k, 100k
- Low frequency cut-off: 0.1Hz, 1Hz, 7.5Hz, 100Hz
- High frequency cut-off: 75Hz, 100Hz, 300Hz
- Curve capture time: 100-500ms
Flash Stimulator
- White background light intensity: 0; 30; 75; 100 (cd/m)
- Flash intensity: 0.01; 0.025; 3; 7.5; 10; 25 (cd.s/m)
- Stimulus light, background light colour: White, red, blue, green
- Duration of flashing light: ≤5ms
- Frequency of stimulation: Single stimulation 0.05Hz, 0.1Hz, 0.5Hz; String stimulation 30Hz
Others
- Human Machine Interaction: On-screen touch + button control
- Monitor: 2.8inch; 320*240
- Printer: External access
- Operating system: Embedded Linux Systems
- Language: English, Russian, Spanish
