EUB 1 Ultrasonic A/B Scanner for Ophthalmology with UBM

Image/video buffer slots for immediate click-and-check, review and comparison



Images/videos captured in real time and saved in lossless format (.bmp & .avi)

Download PDF
Request Demo

Professional Ultrasound

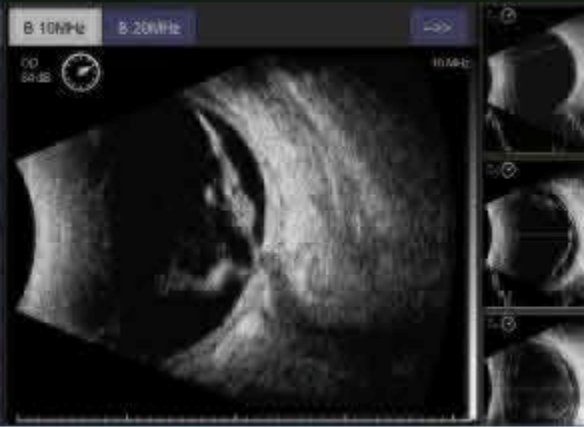

B-Scan Enhanced Visibility and User-friendliness

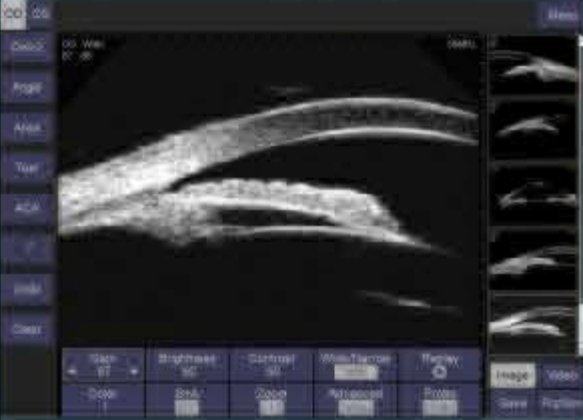

  • Image/video buffer slots for immediate click-and-check, review and comparison
  • Images/videos captured in real time and saved in lossless format (.bmp & .avi)
  • Zooming and scan depth adjustment for better ocular disease observation
  • Vitreous-Enhanced Mode improves visibility at vitreous body

A-Scan & IOL Calculation Enhancements and Tight Integration

  • Biometry buffer slots for immediate click-and-check, review and comparison
  • Improved accuracy and reliability with Average and Standard Deviation for up to 10 scans per exam
  • 6 popular IOL formulae and 5 Post-refractive IOL formulae available

Full Reporting Capabilities

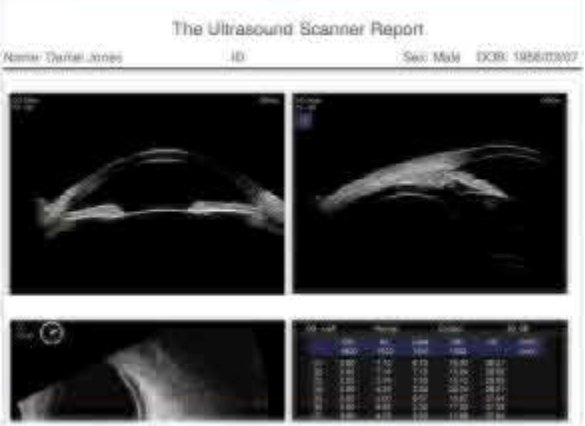

Full report integrating A-scan/IOL results, B-scan images and doctor’s comments with customized dictionary of symptom entries

Comprehensive Data Archiving and Management

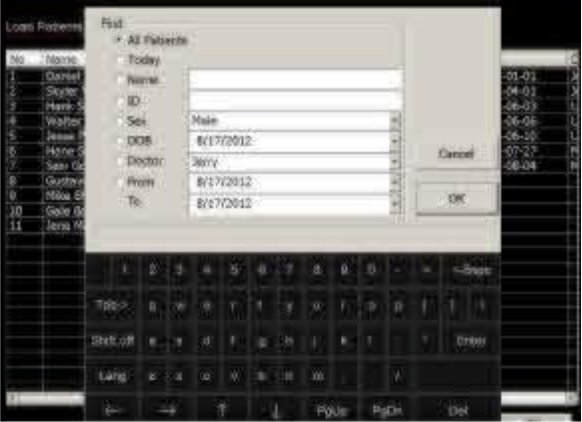

Simple UI allows users to load, search, print, etc. Unlimited storage capacity for over 20,000 exams (8 lossless images per exam)

Features

  • High-Definition 50MHz UBM & 10MHz B-scan Image
  • High Resolution LCD touch screen
  • Image/video snapped and stored in real time in multiple buffer slots for immediate comparison and review
  • B-Scan Multiple TGC options for operator’s preference including vitreous-enhanced mode
  • Two UBM fields of view (16mm × 11.5mm, 8mm × 5.7mm), full or half sulcus-to-sulcus images
  • Editable clinical report with UBM/B-scan images/A-scan/IOL results, and textual comments with configurable entries
  • Reports in PDF format for sharing and print-out
  • Compatibility with graph/text printer
  • Diverse connections via HDMI and USB 2.0 ports
  • HDMI interface for double-screen showcase

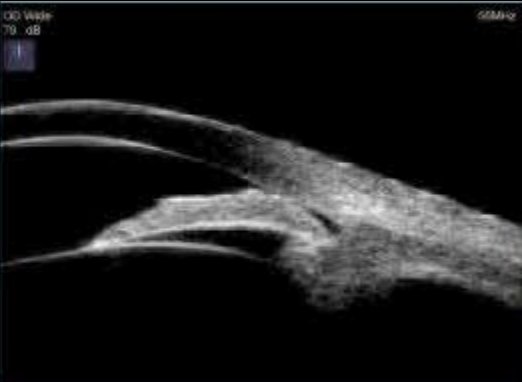

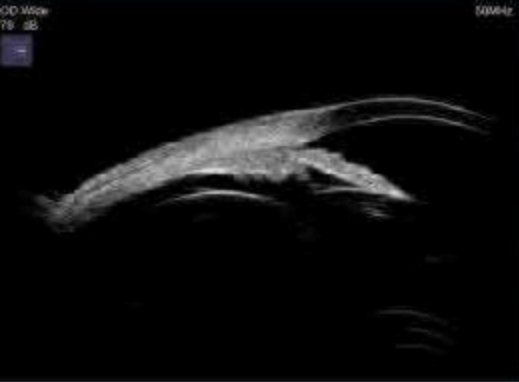

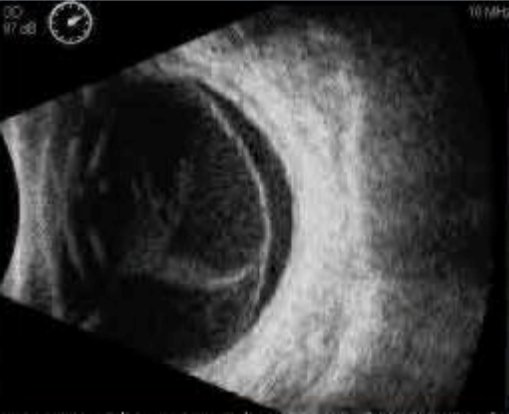

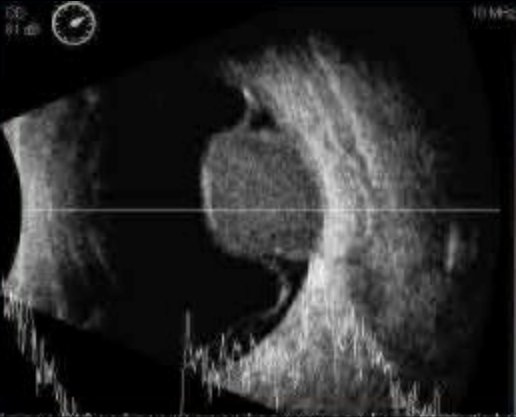

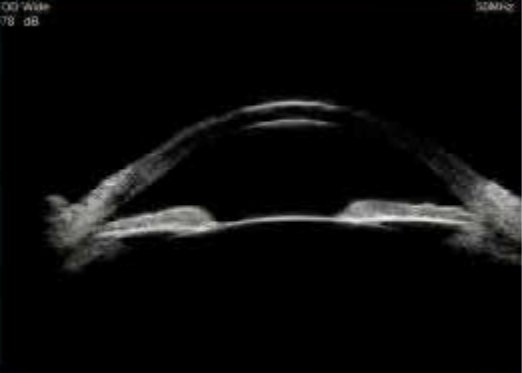

Clinical Gallery

Specification

B-Scan & UBM
Ultrasound Probes
  • 10MHz B-Scan Probe
  • 20MHz B-Scan Probe
  • 50MHz UBM Probe
Axial Resolution
  • 10MHz B-Scan: ≤ 0.1mm
  • 20MHz B-Scan: ≤ 0.08mm
  • UBM: ≤ 0.05mm
Lateral Resolution
  • 10MHz B-Scan: ≤ 0.2mm
  • 20MHz B-Scan: ≤ 0.15mm
Scan Depth
  • UBM: ≤ 50mm
  • 10MHz: 28mm-60mm, 6-Step Selectable
  • 20MHz: 19mm-40mm, 6-Step Selectable
  • 50MHz: 5.7mm, 11.5mm
Cineloop 10s/100 frames with dynamic replay
Image Acquisition
  • B-Scan & UBM images snapped & saved in real-time without any limitation
Gray Scale 256 Levels
Gain
  • B-Scan: 1-105dB adjustable
  • UBM: 1-99dB
TGC (for B-Scan)
  • Default
  • Vitreous-Enhanced Mode
  • Customized
Color Codes 8
Measurements
  • Distance, Area & Angle
  • Annotation
  • Magnification
Biometrics A-Scan
Probe 10MHz with Fixation Red Light
Gain 1-60dB
Measuring Method Contact or Immersion
Measuring Range AL Range: 15mm-40mm
Measuring Accuracy ±0.05mm
Measuring Mode Automatic (Normal, Aphakic, Special and Cataract) or Manual
Measurements Average and Standard Deviation for up to 10 scans per exam
Configurable Tissue Velocities under Special or Manual mode
IOL Calculation
General
  • SRK-II
  • BINK-II
  • HOFFER-Q
  • HISTORY-DERIVED SHAMMAS
Post-Refractive
  • SRK/T
  • HOLLADAY
  • HAIGIS
  • Double K/SRK-T
  • ROSA
General
Display High-Resolution 12.1" LCD
Printer Compatibility Graph/Text Printer and Video Printer (PAL)
Interface Video-out (PAL), HDMI, USB 2.0 Ports
HDD 500GB or higher
Network Folder/Report Sharing
Power Supply AC 100-240V, 50/60 Hz
Operations Touch Screen
Wireless Mouse & Keyboard
Footswitch
Optional Eye Cup
Immersion Shell
Video Thermal Printer
