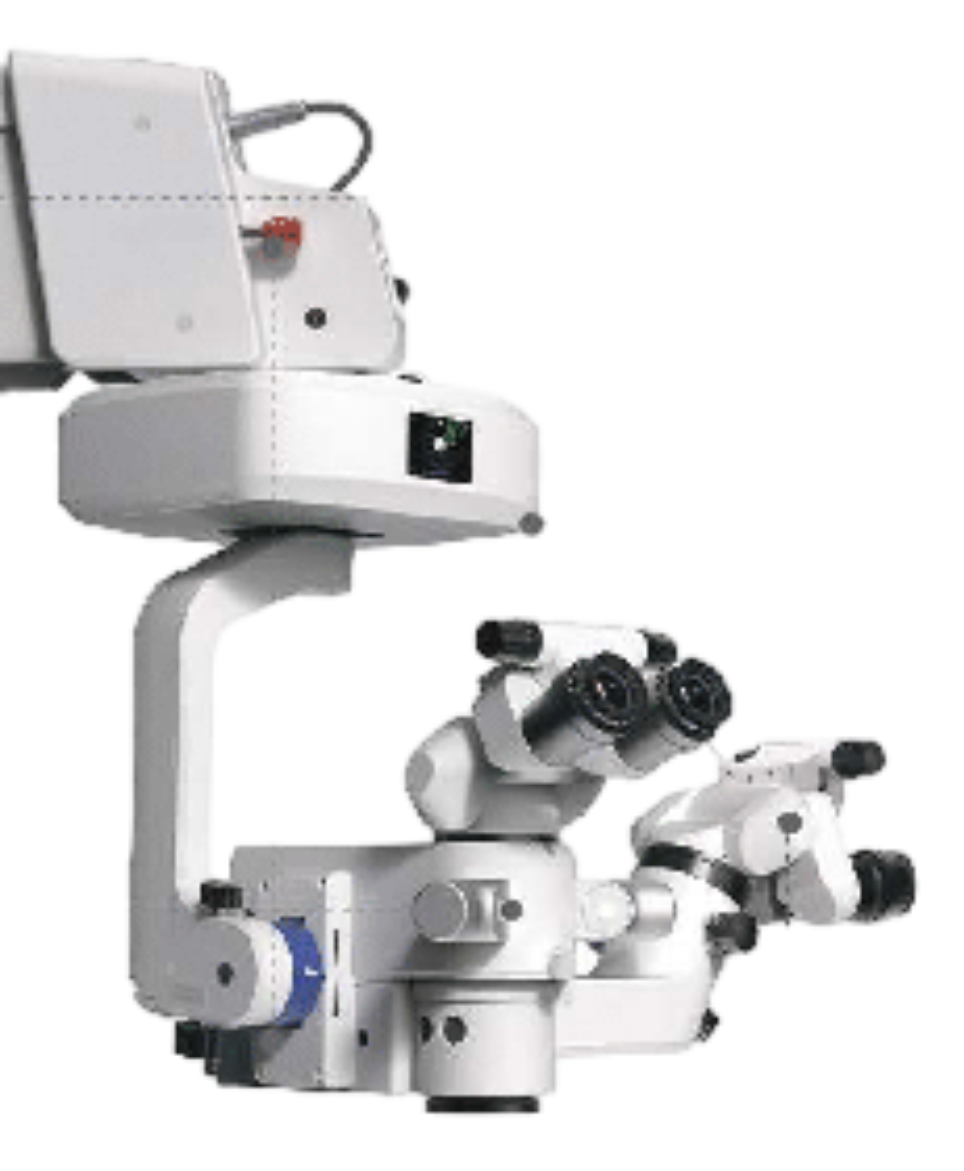

EOM 1 Ophthalmic Surgical Microscope
High quality optical lens with Apochromatic(APO) design and multi-layer optical coating brings high resolution and deep depth of field, enables high comfort during the surgery.
The EOM 1’s electromagnetic locking system makes it easy to position it at the desired angle with the lightest of touches, and the primary and secondary arms can be rotated 360°, making the EOM 1 adaptable to a wide range of applications.
See Everything in Details
New Visual Experience
Cutting-edge Optic Design
High quality optical lens with Apochromatic(APO) design and multi-layer optical coating brings high resolution and deep depth of field, enables high comfort during the surgery.
Motorized ZOOM System
The EOM 1 adopts motorized ZOOM system to reduce discomfort when the field of view changes.
Independent Assistant Microscope
EOM 1’s assistant microscope adopts independent optical path which is independently from surgeon’s microscope, it has 5 steps magnification changer.
Bright and Stable Red Reflex
Red reflex by coaxial illumination makes surgeons can see fine structure under weak light, easily perform continuous circular capsulorhexis (CCC) and aspirate residual lens cortex.
Key Factors at a Glance

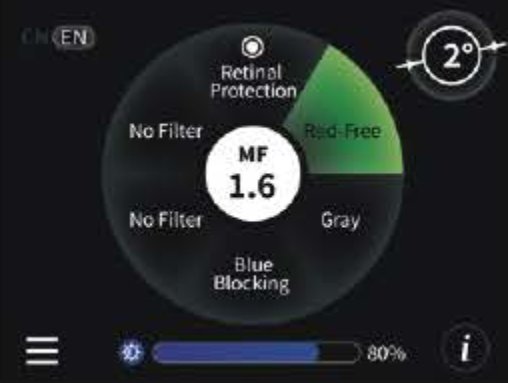

Status display
Full touch screen displays the current status and parameter settings of the EOM 1.
Adjustable Balance System
The inclination of microscope head can be easily adjusted upwards and downwards while keeping balance. The inclination degree ranged from 15° upwards to 35° downwards will be shown on the "Status Display".
More Comprehensive More Details
Electromagnetic Locking System
The EOM 1’s electromagnetic locking system makes it easy to position it at the desired angle with the lightest of touches, and the primary and secondary arms can be rotated 360°, making the EOM 1 adaptable to a wide range of applications.
Security Guarantee
Built-in backup power supply, easy bulb exchange and security lock on secondary arm ensure safe surgery.
Auto Power-off Protection
The EOM 1 will automatically enter the powered-off state when the secondary arm is raised to a certain height. It will greatly facilitate surgeon’s operation and extend the service life of lamp source.
X-Y-Z Axis Fine Adjustment
Accurate lateral and longitudinal X-Y-Z axis movements for precise positioning during surgeries.
180°
The binocular tubes of surgeon’s microscope and assistant’s microscope can be smoothly adjusted from 0° to 180°.
Foot Control Panel
The foot control panel can totally control 14 functions of EOM 1, surgeons can easily adjust the light and zoom magnification, switch the filters and backup LED etc. Without any hand movement.
- Light on/off
- Switch filter
- Light +
- Light –
- Reset XY
- Backup LED

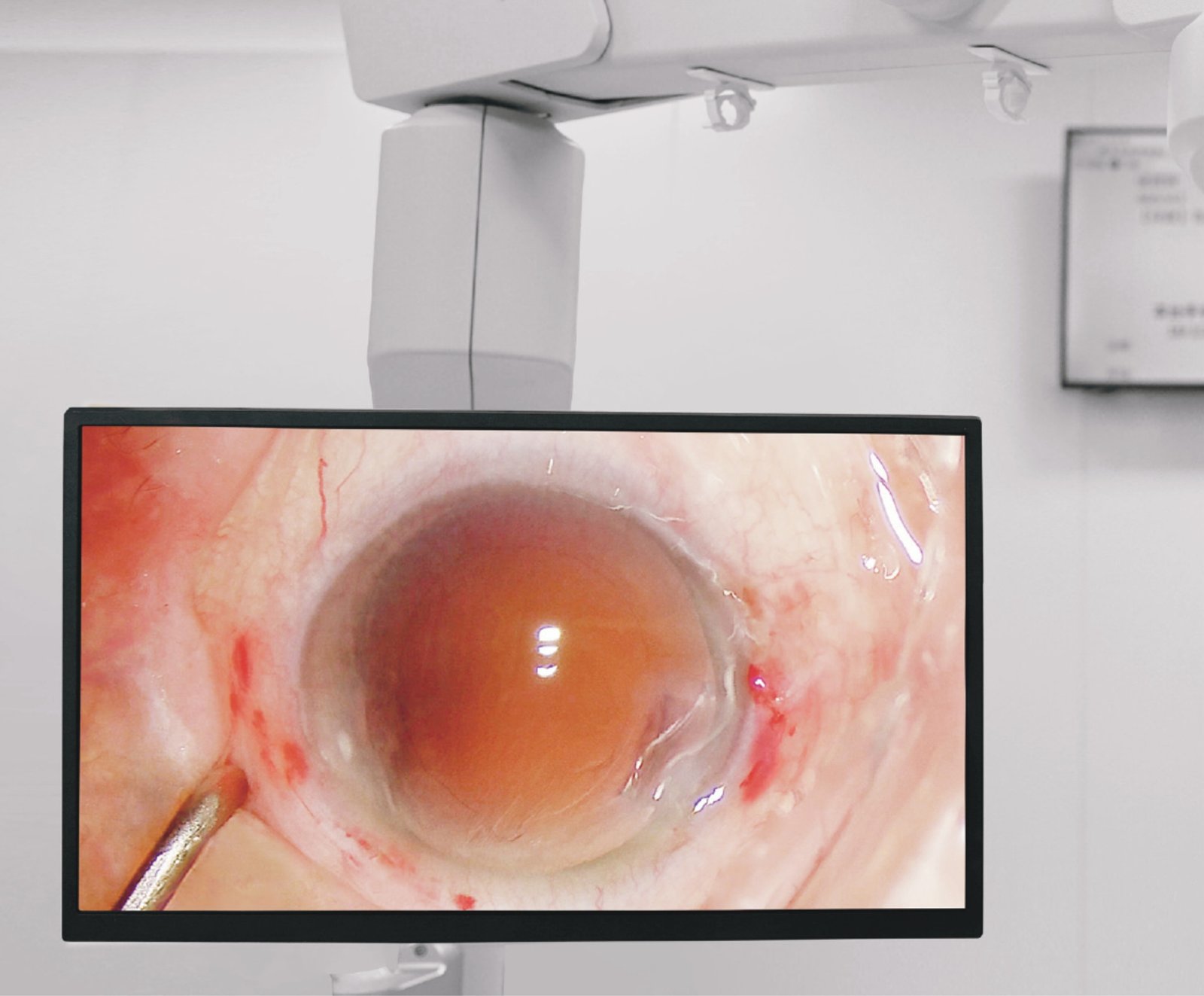

4K High Resolution Video
Optional 4K digital module with low noise, high sensitivity and good image quality. It can be used for surgery teaching, academic research, patient case sharing which helps bring more harmonious communication between doctors and patients.
Enhanced Depth of Field
Adjustable aperture can meet different needs of brightness and depth of field.
Clinical Applications
Ocular anterior segment surgeries
Cataract phacoemulsification combined with intraocular lens implantation, glaucoma surgery, ICL implantation, pterygium surgery, ocular trauma surgery, orbital plastic surgery, etc.
Ocular posterior segment surgeries
Vitrectomy, intravitreal injection, etc.
Specification
| Surgical Microscopes | Motorized zoom system with apochromatic lens, zoom ratio 1:6 |
|---|---|
| Magnification factor y = 0.4 to 2.4 | |
| Focusing: electric, focus range: 50 mm | |
| Objective lens: f = 200 mme | |
| Binocular tube: 0-180°, tiltable tube f = 170 mm | |
| Wide-angle eyepiece 12.5 x | |
| Assistant microscope manual magnification change: 5 steps | |
| Illumination | Coaxial illumination manual exchangeable: Coaxial & Step |
| LED illumination | |
| One-touch automatic bulb exchange | |
| Blue blocking filter | |
| 25% gray filter | |
| Red-free filter | |
| Retinal protection filter | |
| Aperture diameter: 50 mmr | |
| X-Y Coupling | Movement range: max: 50 mm x 50 mm |
| Automatic centering by pressing the reset button | |

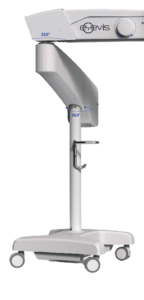

| Suspension System | Floor stand |
| Maximum load capacity: 15 kg (complete equipment, including accessories) | |
| 15 kg (complete equipment, including accessories) | |
| Electromagnetic locking | |
| Maximum extension radius of spring arm: 1270 mm, 360° rotation | |
| Vertical moving range of the spring arm: 200 mm up and 300 mm down | |
| Universal casters | |
| Foot Control Panel | 14 functions |
| Weights and Measurements | Microscope Weight: 200 kg |
| Package Weight: 307 kg | |
| Microscope Dimension: 1300 mm x 664 mm x 1760 mm (L/W/H) | |
| Package Dimension: 1035 mm x 835 mm x 2005 mm (L/W/H) |
