EFC1 Hand-held Fundus Camera

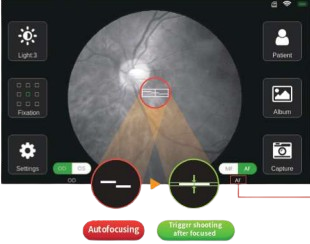

EFC1 adopts Auto Split Focusing technology, focusing speed reaches milliseconds. It avoids the out-of-focus of the fundus image caused by the patient’s movement during shooting, effectively improving the image quality and reducing the requirements for cooperation between operators and patients.

This function can be easily triggered by pressing the shooting button. EFC1 will automatically recognize the infrared preview fundus image and trigger the internal mechanism to perform auto focus adjustment. For low-contrast focusing environments, the focus point can still be accurately locked on the details of the fundus.

MF Manual Focus AF Auto Focus)

Advantages

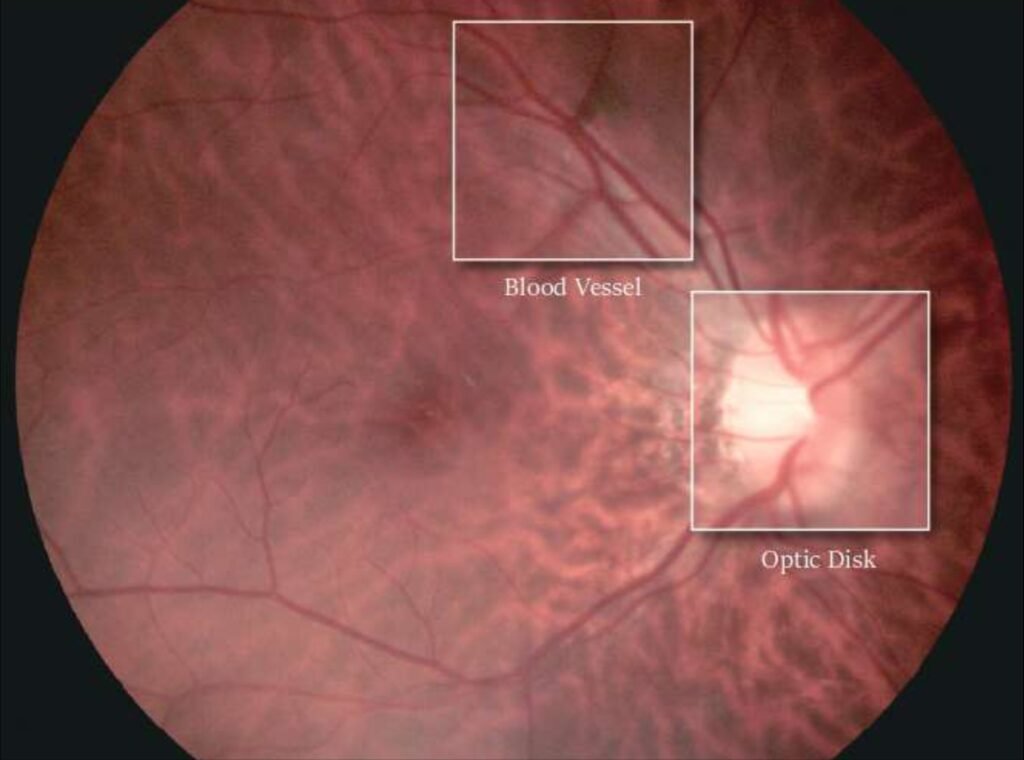

High Resolution

EFC1 provides high-resolution fundus images, with image resolution up to 12 Mega Pixels.

It makes the diagnosis of early lesions more accurate and is also essential for diagnosing retina diseases, such as diabetic retinopathy, glaucoma, and macular degeneration.

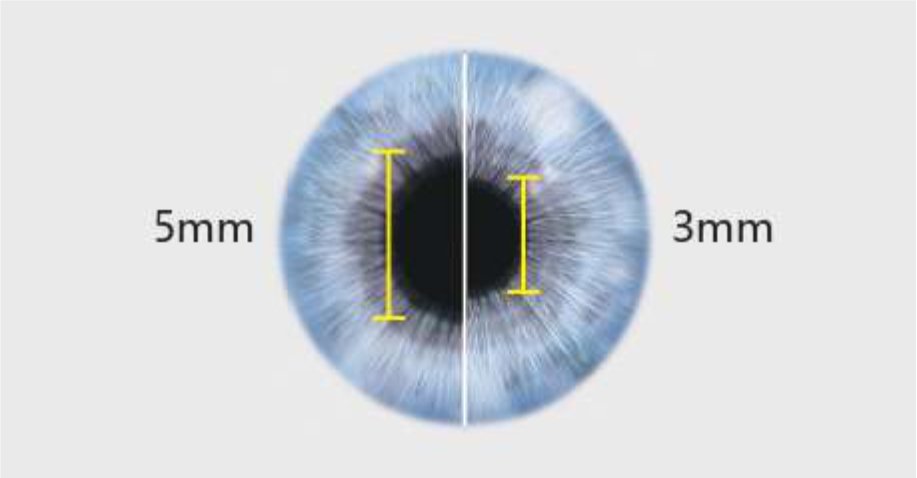

Non-mydriatic

The minimum pupil diameter of EFC1 is φ3.0mm. 20 minutes of mydriatic waiting time is saved, and the risk of mydriasis to the patient is avoided.

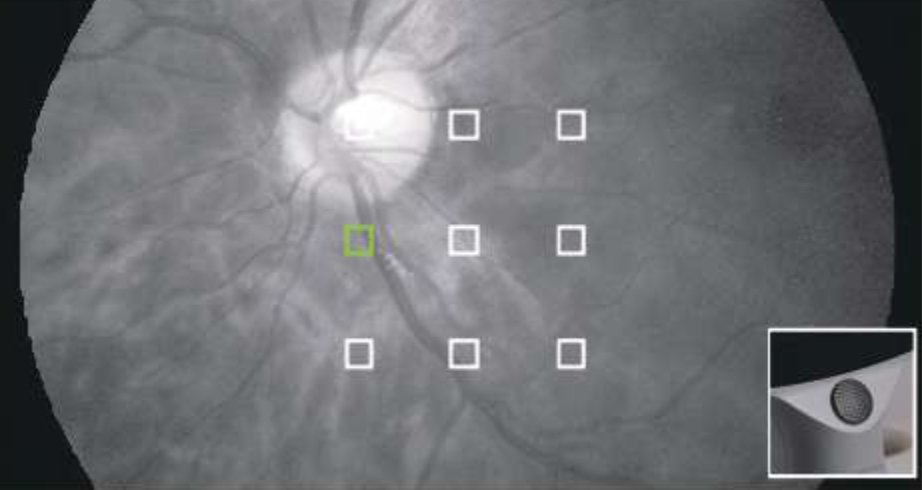

9 Fixation Targets

With 9 fixation targets, EFC1 covers an 85° field of view of the fundus and supports the examination of early peripheral lesions of the fundus.

With a 45° field of view, a single central fundus image can be taken to meet the needs of fundus disease screening.

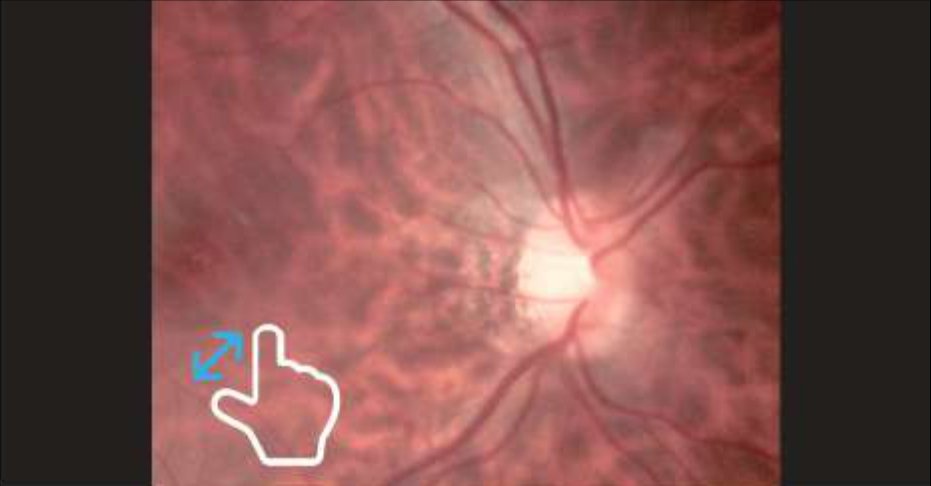

Smart Touch Operation

4.3″ full-touch LED screen brings a smarter operating experience. Doctors can zoom the image at any time to check the details of the fundus, and can also easily slide the screen to edit and view the case.

Real Time Uploading

EFC1 Supports real-time synchronization between funds images and mediview patient management software through WIFI connection

Specification

Specification	Details
Type	Non-mydriatic
Field of View	45°
Camera Sensor Resolution	12M Pixels
Fixation Targets	9×LED, Internal
Minimum Pupil Size	3mm
Illumination	White LED
Focusing	Manual/Automatic
Focus Range	-20D to +20D
Display	4.3" Touch Screen
Image Format	JPEG
Type of Image	Color
Memory	Micro SD card, Maximum 32G
Data Connectivity	WIFI/USB
Power Supply	Rechargeable battery 3.7V/3400mAh x 2
Working Time	6 hours
Charging Station	100-240V, 0.5A, 50/60Hz
Power Supply	5V DC, 2A
Dimensions	28cm x 13cm x 15cm
Weight	800g
Languages	Chinese, English
Standard Accessories
Hand-held Fundus Camera
Recharging Station
Protection Cover
Power Adaptor
USB Cable
Mediview Patient Management Software
Carrying Case
Optional Accessories
Slit Lamp Attachment
